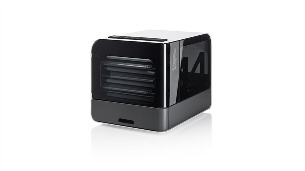

BrailleBox V5

BrailleBox V5

• High-speed sheet-fed braille embosser

• BrailleBox is the only high-speed braille printer for cut-sheet paper.

• Speed up to 300 characters per second

• 400 pages automatic sheet-feeder

• Automated braille tray

• Optimized for booklet production on A3 paper

• Dot forming height 0,58 mm

• Noise canceling construction

Technical specifications

Braille

• Embossing speed cps 300 cps

• Single-sided/Double-sided

• Vertical printing (booklet)

• Adjustable line spacing

• Braille font 2.5 mm

• Tactile resolution 20 dpi

• Forming method 13 solenoids against steel anvils

Communication

• USB/USB memory stick

• Wi-Fi network/Wired network

• Bluetooth

• Supports mobile devices

• Printer driver for Windows

• Printer driver for Mac

• Printer driver for Linux

• Web interface

• Free firmware upgrade

• Supports idB

Electrical

• Voltage  100-240 V AC

• Power max 400 W

• Power stand by 5 W

• Eco power down 1.0 W

• Switched power supply

Paper

• Cut sheet fed

• Sheet feeder size 400 pages

• Paper weight 150-180 g/m2 (80-110 lbs)

• Paper width A3 (297x420 mm), Tabloid 11"x17"

• Paper length 11"x11.5", A4, 11x8,5"


     B4 250x353 mm

• Fixed paper size


Measurements

• Height 56 cm (22.05 in)

• Width 72 cm (28.35 in)

• Depth 90 cm (35.43 in)

• Net volume 362.88 dm3 (12.81 ft3)

• Net weight 68.2 kg (150.04 lbs)

• Noise level 70 dB(A)
