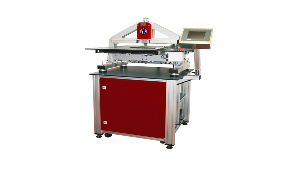

Puma VII
Puma VII
- Produces master single-sided or double-sided (interpoint) Braille plates
- on various materials for mass production
- Capable of producing Tactile Graphics
- Includes various printing modes and adjustable dot and line spacing
- Includes touchscreen-display with menu, file manager and preview
- Includes the Firebird Graphics software
Embossing speed
- Maximum of 15 CPS @6 dot Braille
- Includes Special Printinghead for Tactile Graphics
Format
- Small, medium and large-print braille cells
- Char per line max. 40 in medium print
- Lines per page max. 31 in medium print
- Char. spacing variable in 0.1mm steps
- Line spacing variable in 0.1mm steps
- Positioning of text in 0.1mm steps in char and line directions
Printing plate size
- Max. width: 285 mm or 11.2”
- Max. height: 340 mm or 13.9”
- Max. thickness folded: 0,6 mm or 0.024” area to be printed: 240*325 mm or 9.5”x12.80”
Printing plate material
- Zinc 99,9 % DIN 1706
- Aluminium ISO 209-1 "Alu 99,0 Cu“
- Plastic, among others
Printing modes
- Forward
- Backward
- Bidirectional
- Double sided (interpoint)
Interface Ports
- Via serial interface
- USB
- Thumbdrive
- From a keyboard
Operating voltage
- 110 V – other voltages on reques
- Power consumption: 0,8 KW
- Ambient temperature 0° to 40ºC – 32º to104ºF
Weight
- Lower frame: 120 Kg or 264 Lbs
- Embossing unit: 132 Kg or 290 Lbs
- Packing for lower frame: 60 Kg or 132 Lbs
- Packing for embossing unit: 58 Kg or 128 Lbs
