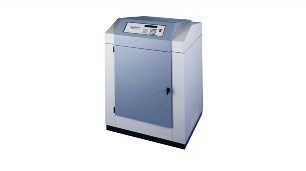

BRAILLE PLACE


BraillePlace

  • Produces high-quality double-sided (interpoint) and single-sided Braille
  • High speed embossing up to 300 CPS (1,000 PPH)
  • Quiet. Housed in a high-quality, self contained, free standing enclosure on casters
  • Comes with Dynamic Braille Scaling that allows for adjustments in Braille cell size and spacing

Printing

  • Printing Speed: Double Sided/Interpoint 300* characters per second.
  • Line Width: 45 characters maximum
  • Lines Per Page: 27 lines maximum.
  • Paper Width: Adjustable 1.5 inches to 13.25 inches (3.8 to 33.6 cm).
  • Page Length: Selectable. 1 inch to 12 inches.
  • Paper: Continuous tractor feed paper.
  • Paper Weight: Variable (100-pound traditional Braille paper is recommended).

Physical Description

  • Width: 39 inches (99.1 cm).
  • Depth: 30 inches (76.2 cm).
  • Height: 58 inches (147.3 cm).
  • Shipping Weight: 950 pounds (431.30 kg).

Enclosure: Built in a self contained, free standing enclosure on casters.

Environmental

  • Temperature: Operating or Storage: 35 F to 100 F (2 C to 37.8 C).
  • Humidity: Operating or Storage: 10% to 95% noncondensing.


Electrical

  • Line Voltage: 220 - 240 VAC, 50/60 Hz, single-phase, 20A.
  • Fuse Rating: 250V, 10A slow blow (2).

Interface: (Port 1) Centronics compatible parallel. (Port 2) Asynchronous Serial, EIA RS-232D, DTE (Port 3) ET Speaks, serial.

Compatibility:

  • All Windows Operating Systems through Windows 8.
